Stepper motors can be connected in parallel with any 2 phases.
If it is an eight-wire two-phase stepper motor, its application can be unipolar wiring, series connection wire, parallel connection wire as needed.

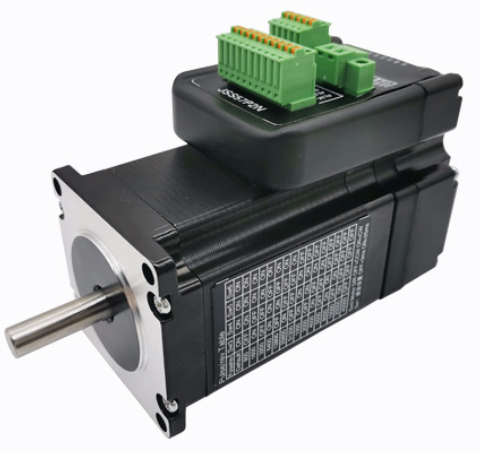

Nema 23 Closed loop servo stepper motor
Unipolar wiring requires a combination of unipolar drivers, which are not very versatile. If the user needs the motor to work in the low-speed power torque situation, the series connection line method can be used, at this time the motor current should be set smaller, and the output current requirements for the driver are lower; If the user needs the motor to work in medium and high-speed occasions, the parallel connection line mode can be used, at which time the motor current should be set to be larger, and the output current of the driver should be larger.

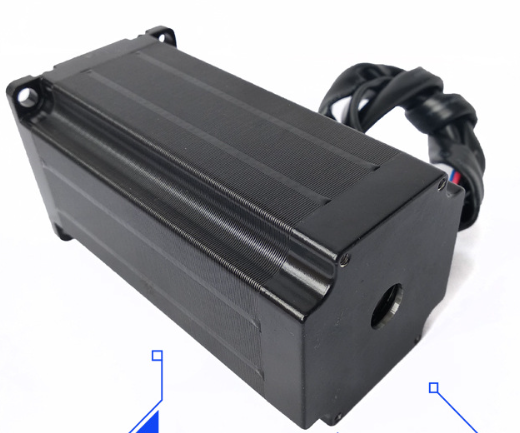

57 series stepper motor single and double shaft NEMA23 manufacturer

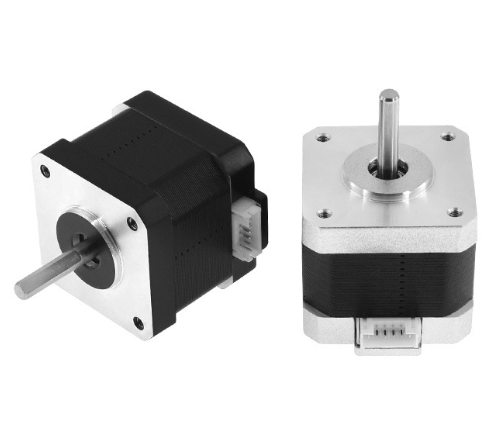

For example, Inash's 42HS03 motor, the rated phase current is 2.3A, if the series connection line method, the working current of the motor is about 1.6A, you can use the EZM322 drive; if the parallel connection line method, the working current of the motor is about 3.2A, you need to use the EZM442 driver. In short, users need to choose the most suitable stepper drive scheme according to their needs, and can obtain greater economy.
