Question

What is a stepper motor drive tester? How does the stepper motor tester operate? How to use stepper motor drive tester?

Answer 1

Stepper motor driver tester is a test power supply suitable for two-phase bipolar stepper motor performance test, using stepper motor special drive chip and single-chip microcomputer to complete the stepper motor start, stop, continuous operation, single step operation, set the number of steps, preset operation and other parameters.

Answer 2

Stepper motor torque tester (stepper motor torque test):

The machinery and equipment industry is developing at a very fast speed, and stepper motors play a very important role in this industry. However, to verify the quality of the stepper motor, it is necessary to perform a torque test on the stepper motor to ensure the quality of the stepper motor. For this reason, the stepper motor torque tester came into being.

Structure of stepper motor torque tester:

The stepper motor torque tester is mainly composed of power supply, main control module, measurement module, output module and display module. The power module is used to input power to the stepper motor torque tester to ensure the normal operation of the stepper motor torque tester. The main control module is the core component of the stepper motor torque tester, which is responsible for controlling the torque test of the stepper motor and sending the test results to the measurement module. The measurement module measures the torque of the stepper motor and outputs the test results to the output module. The output module outputs the measurement results to the display module so that the user can view the test results.

Answer 3

The main function of the stepper motor torque tester is to measure the torque of the stepper motor to detect the quality of the stepper motor. It has precise measurement results, which can accurately measure the torque of the stepper motor to ensure that the quality of the stepper motor meets the specified requirements. In addition, the stepper motor torque tester also has the advantages of good reliability, easy operation and fast test speed, which can meet the different needs of users.

Answer 4

The advantages of stepper motor torque testers are mainly reflected in its accuracy and reliability. It can accurately measure the torque of the stepper motor and ensure that the quality of the stepper motor meets the specified requirements. In addition, the stepper motor torque tester also has the advantages of good reliability, easy operation and fast test speed, so as to provide users with better service.

Answer 5

Stepper motor drive tester is an instrument specially used to detect and debug various types of stepper motors.

Stepper motor drive tester features: It has the characteristics of small size, light weight, easy to carry, etc., mainly composed of three parts: tester host, tester tooling table and profile frame. The product adopts single-chip microcomputer control, can complete a variety of test items, is a maintenance personnel motor maintenance necessary instruments, used to detect the quality of the stepper motor, convenient for people to use and debug.

Answer 6

The operation steps of the stepper motor tester are as follows:

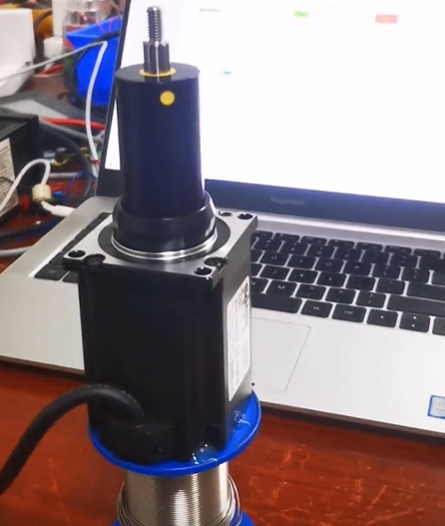

1. Place the stepper motor, place the stepper motor on the copper plate tooling, and connect the stepper motor lead wire and the tester tooling table.

2. Slide cover measurement, slide the slide above the tooling table to the station to be tested to start the test.
