where are industrial robots often used in manufacturing?

Question

what robots are used in manufacturing? where are industrial robots often used in manufacturing?

Answer 1

Manufacturing robots are gaining popularity due to their ability to produce products quickly and efficiently.

While many different types of robots can be used in manufacturing, industrial robots are the most common.

Industrial robots can perform a variety of tasks and are ideal for use in manufacturing.

What are the robot line pack accessories

Types of robots used in manufacturing

Here's how robots are revolutionizing the mining industry

Industrial robots are generally divided into two main categories: fixed-arm robot systems and articulated robot systems.

A fixed-arm robotic system is made up of a fixed arm attached to one or more joints, allowing it to move in multiple directions. These robots are often used for assembly, welding, and other repetitive tasks.

What are the robot line pack accessories What are the functions of robotic line pack accessories

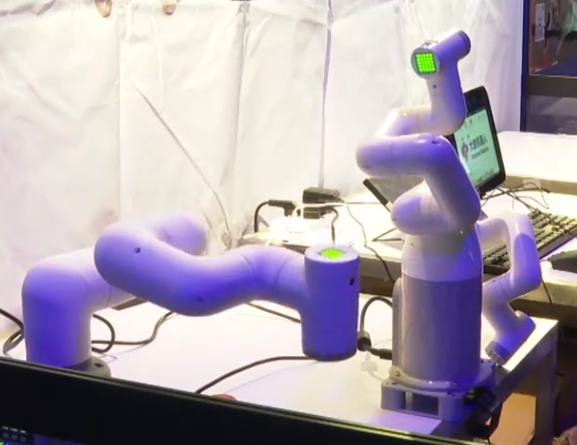

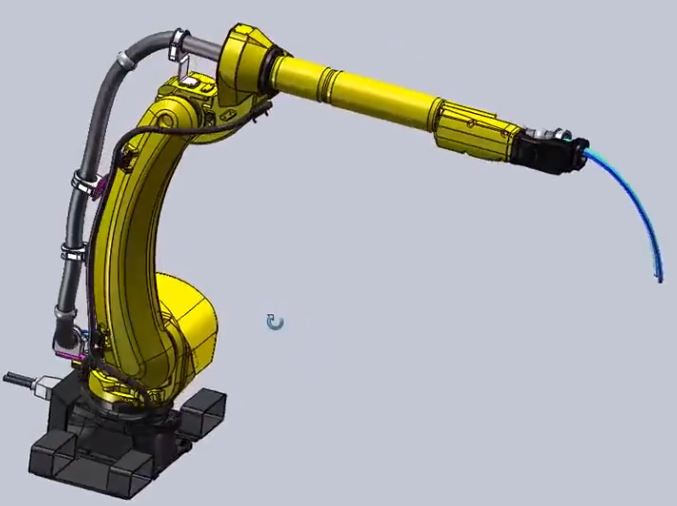

Articulated robot systems have multiple axis connections, allowing the robot to move in three-dimensional space. Due to their flexibility and ability to reach tight spaces, they are often used in pick-and-place applications.

Another type of robot used in manufacturing is called a mobile robot. These robots transport materials from one place to another, often in warehouses or factories.

Advantages of using robots in manufacturing

There are many advantages to using robots in manufacturing. They are often faster and more accurate than manual processing, which helps reduce costs and increase efficiency. In addition, they can be programmed to perform complex tasks with minimal human intervention, reducing labor costs. In addition, the robot can work continuously without rest and does not require the same level of supervision as manual workers.

Robotic VR manufacturing automation

Another benefit of using robots in manufacturing is that they can help reduce the chance of workplace accidents. When robots take over the work of human employees, they are much less likely to be injured. Finally, robots can help reduce air and noise pollution in manufacturing facilities.

Finally, robots are highly flexible machines that can be easily reprogrammed for different tasks or applications. A robot can often be used for a variety of production jobs, which is an excellent investment for businesses looking to increase productivity.

vr robot killing game

Disadvantages of using robots in manufacturing

Although robots have many advantages in manufacturing, there are also some disadvantages. First, robots can be expensive to purchase and maintain. In addition, they require a certain level of programming knowledge to operate correctly, which can be difficult for small businesses that need more resources or expertise.

Moreover, while robots may be able to perform repetitive tasks faster than humans, they still lack the creativity and problem-solving skills that humans possess.

Finally, the use of robots in manufacturing creates job losses because machines replace human labor.

Therefore, companies must consider the economic and social impact of implementing robotics.

vr robot manufacturers usa

How robots are changing manufacturing

Robots are becoming increasingly important in manufacturing. Automation and artificial intelligence enable robots to take on more complex tasks, making businesses more efficient and productive. In addition, advances in robotics have allowed robots to work in tandem with humans, ensuring safety while improving accuracy and performance.

The use of robots also provides companies with new ways to increase profits by improving quality control, increasing the speed of product delivery, and reducing labor costs. Finally, robots are changing the way we think about production by improving processes, helping us approach a fully automated industry.

Examples of industries commonly used in industrial robots
Industrial robots are mainly used in automotive, electronics, food and beverage, pharmaceutical, metal fabrication, rubber and plastic manufacturing. Automotive companies often use industrial robots for welding and assembly tasks, while electronics manufacturers use them for pick-and-place applications.

Food and beverage companies use robots for packaging and palletizing operations, while pharmaceutical companies use the speed and precision of robots for highly accurate mixing or weighing tasks. Metal fabrication utilizes robotic arms for the welding process, while rubber and plastic rely on robotic arms to handle materials more accurately than manual workers.

Regardless of the industry, it is clear that industrial robots have become an integral part of many production lines around the world. They provide businesses with a reliable source of labor that can work uninterrupted and often require the same level of supervision as manual workers.

Which robot is most frequently used in manufacturing?

The future of robotics in manufacturing

VR manufacturing automation

The use of robots in manufacturing will only increase in the coming years. Businesses are constantly looking for ways to improve their operations, and automation solutions are becoming increasingly attractive. This means that as businesses seek more efficient and cost-effective solutions, the demand for robots will only grow.

In addition, advances in robotics mean that robots can now be used for a variety of tasks such as 3D printing, machine learning, and autonomous navigation. Finally, the development of collaborative robots, or collaborative robots, creates new opportunities for humans and machines to work in harmony.

Answer 2

What is the definition of an industrial robot?

The robot is a machine with more degrees of freedom in three-dimensional space and can realize many anthropomorphic actions and functions, while industrial robots are robots applied in industrial production.

industrial robot manufacturers in China

Its characteristics are: programmable, anthropomorphic, versatile, mechatronics.

Answer 3

The role and characteristics of the robot end tool

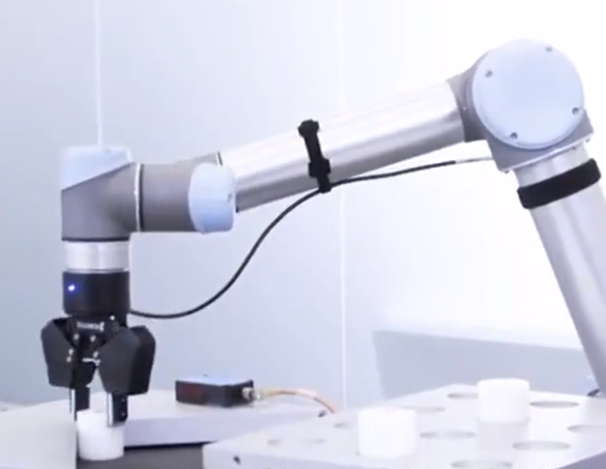

The robot hand is a part used to hold a workpiece or tool, and is a stand-alone part, which can have a claw or a special tool.

According to the clamping principle, what are the types of end tools? What specific forms are included?

According to the principle of clamping, the end gripping hands are divided into two categories:

Clamping types include internal support type, external clamp type, translation external clamp type, hook type and spring type;

China's domestic stepper motor driver chip

Adsorption class includes magnetic type, air suction type.

How many types of vacuum suction cups can be divided into according to the working principle? How does it work?

According to the principle of operation, it is divided into three categories:

Vacuum suction cups. A vacuum is formed by using a vacuum pump to extract the air of the adsorption head;

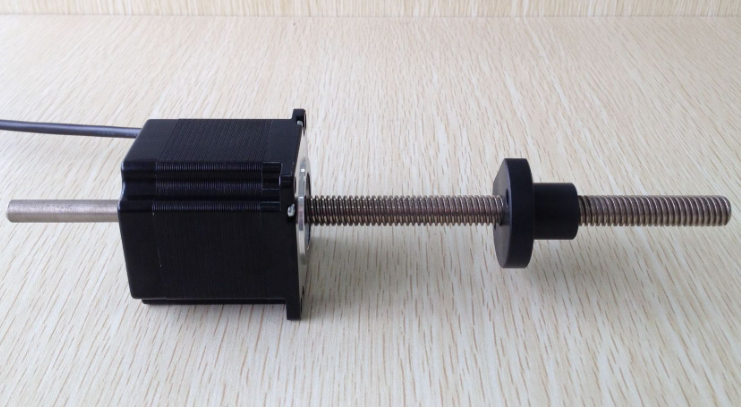

57mm screw stepper motor, external drive motor, CNC engraving machine automation

Spray suction cups. Using the Bernoulli effect to generate negative pressure, when the fluid velocity increases, the pressure at the interface between the object and the fluid decreases, and vice versa. No special vacuum pump is required with compressed air and ejectors;

Squeeze negative pressure suction cup. Vacuum and release vacuum by mechanical action, no vacuum pump system or compressed air required, the air source is economical and convenient, but the reliability is slightly poor.

What is the difference between hydraulic and pneumatic transmission in terms of operating force, transmission performance and control performance?

Operating force. Hydraulic pressure can obtain large linear motion force and swing force, grabbing weight 1000 to 8000N; Air pressure can obtain small linear motion force and rotation force, and the gripping weight is less than 300N.

Transmission performance. Hydraulic compression small transmission is stable, no impact, basically no transmission hysteresis, reflecting sensitive movement speed up to 2m/s; Air pressure, compressed air, small viscosity, small pipeline loss, large flow rate, can reach higher speed, but poor stability at high speed, impact is serious, usually cylinder 50 to 500mm/s.

Control performance. Hydraulic pressure and flow are easy to control, and can be adjusted by stepless speed regulation; Low air pressure is not easy to control, difficult to accurately position, generally do not do servo control.

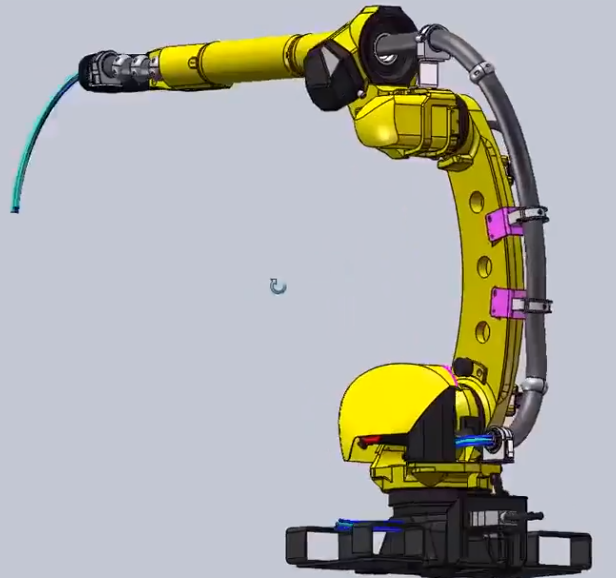

Robot manufacturers in china - Robotic wiring kit accessories

What is the difference in performance between servo motors and stepper motors?

The control accuracy is different (the servo motor control accuracy is guaranteed by the rotary encoder at the rear end of the motor shaft, and the servo motor control accuracy is higher than that of the stepper motor);

Different low-frequency characteristics (servo motor runs very smoothly, even at low speed, there will be no vibration phenomenon, general servo motor low-frequency performance is better than stepper motor);

The role and characteristics of the robot end tool

Different overload capacity (stepper motor does not have overload capacity, servo motor has strong overload capacity);

Different operating performance (the control of stepper motor is open-loop control, and the AC servo drive system is closed-loop control);

Different speed response performance (AC servo system acceleration performance is better).

Answer 4

What areas can industrial robots be used?

Welding robots are industrial robots engaged in welding operations, and welding robots in the furniture manufacturing industry are generally used in automatic production lines for metal and furniture technical parts. The grinding robot is a type of industrial machine that meets the grinding section of furniture manufacturing.robot manufacturers in China

Cartesian robots Cartesian robots, also known as Cartesian robots, move directly along three axes (length, width, and height). Due to the inherent robustness of this structure, it can be used under the heaviest loads.

Which robot is most frequently used in manufacturing?

Manufacturing robots are gaining popularity due to their ability to produce products quickly and efficiently. While many different types of robots can be used in manufacturing, industrial robots are the most common. Industrial robots can perform a variety of tasks and are ideal for use in manufacturing.

Below we delve into industrial robots and discuss some of their key characteristics. We'll also explore why they are often used in manufacturing and provide some examples of industries where they are commonly used.

Finally, we will provide tips on choosing the right industrial robot for your business.

Answer 5

What areas can industrial robots be used?

As a modern scientific and technological crystallization, industrial robots have the main characteristics of high stability, reliability and high precision, and can operate in high-risk environments, which not only reduces the work intensity of staff, but also improves the efficiency and quality of operations, and is the core force to promote the development of the manufacturing industry.

At present, industrial robots can be used in the following fields:

1. Automotive field

Industrial robots related to the automotive field are currently the most automated, and with the increasing demand of the automotive market, people also have higher requirements for the production efficiency and production quality of automobiles.

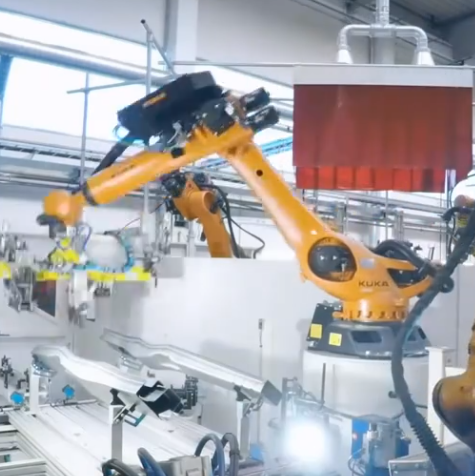

In the vehicle manufacturing process, industrial robots can now complete a series of automated assembly work such as welding, spraying, handling, gluing, stamping and other automatic assembly work of the vehicle body, liberating manpower and greatly improving production efficiency.

For example, the research team of Shenyang Siasun Robot Co., Ltd. has developed a grinding and polishing robot system, which can be widely used in the processing and repair of various parts such as cockpit transparent parts, molds and blades.

In foreign countries, such as the STICHL chain robot grinding system developed by KUKA Robotics, it can realize the surface grinding and polishing of complex surfaces.

2. Aviation field

In the aviation industry, due to the unstable quality of manual spraying and great harm to the human body, intelligent robots are used instead. For example, the robotic aircraft finishing system developed by Lockheed Martin uses three robots for spraying, and the spraying robot is applied to the surface stealth spraying of the F-35 stealth fighter, which can ensure that more than 95% of the thickness of the coating measurement point meets the tolerance requirements, process stability and good coating quality. In the international aircraft manufacturing industry, the welding technology requirements for aircraft and spacecraft manufacturing are getting higher and higher, and the introduction of industrial welding robots has significantly reduced weld defects.

Secondly, in the large-size workpiece products of aerospace manufacturing, due to its huge weight and size, it is not easy to move, and the use of traditional industrial robots will lead to very high manufacturing and control costs, so mobile industrial robots are a good solution.

3. Military field

National defense as the foundation of the nation, robots also play a role. Because it has the advantages that conventional combatants do not have: high sensitivity, strong load capacity, high endurance, special operations missions can be carried out on special occasions, and most importantly, it can reduce casualties.

4. Medical field

With the rapid development of the robot industry, the development of medical industrial robots has received great attention around the world. With the intensification of the aging of the global population and the development of science and technology, people's requirements for all aspects of life are also increasing, among which the United States has set surgical treatment machines, prosthetic robots, rehabilitation robots, psychological rehabilitation assistance robots, personal care robots, and intelligent health monitoring systems as six major research directions for future development.

5. Deep sea field

With the development and utilization of marine resources, industrial robots are used as the main exploration tools in the deep-sea field for seabed resource exploration and deep-sea cable repair. For example, in the maintenance of deep-water submarine cables, the use of robots instead of divers for maintenance can not only improve work efficiency, ensure personnel safety, but also save nearly half of the economic cost.

6. Furniture field

For different sections of furniture industry production, according to their functions, the types of robots used by industrial robots in furniture production mainly include welding robots, grinding robots, spraying robots, assembly robots, handling robots, AGV robots.

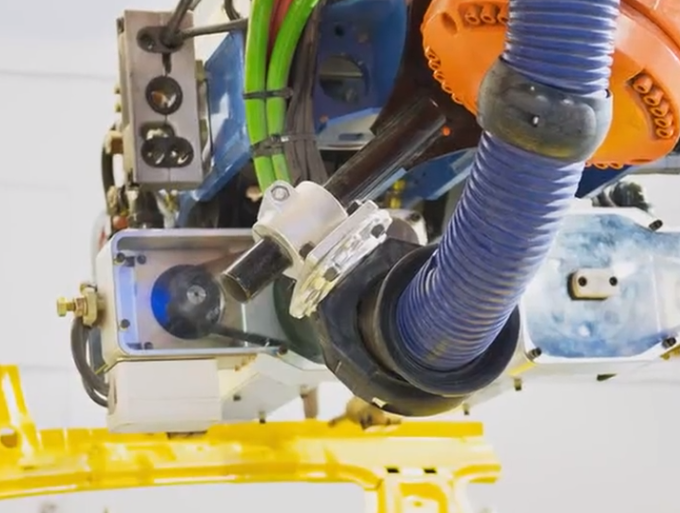

Welding robots are industrial robots engaged in welding operations, and welding robots in the furniture manufacturing industry are generally used in automatic production lines for metal and furniture technical parts. The grinding robot is a type of industrial robot that meets the grinding section of furniture manufacturing, which can meet the processing technology requirements according to the contour shape and surface roughness of the workpiece and realize automatic grinding.

The spraying robot can automatically spray or spray other coatings of industrial robots, which is used to automate the furniture surface decoration process, effectively reduce the impact of paint on the health of operators, and improve spraying efficiency and spraying accuracy.

Furniture assembly robot is a type of industrial robot used to assemble parts or components in the furniture manufacturing process, such as chair assembly, wooden door frame material assembly, etc., which can effectively improve the degree of assembly automation and assembly accuracy.

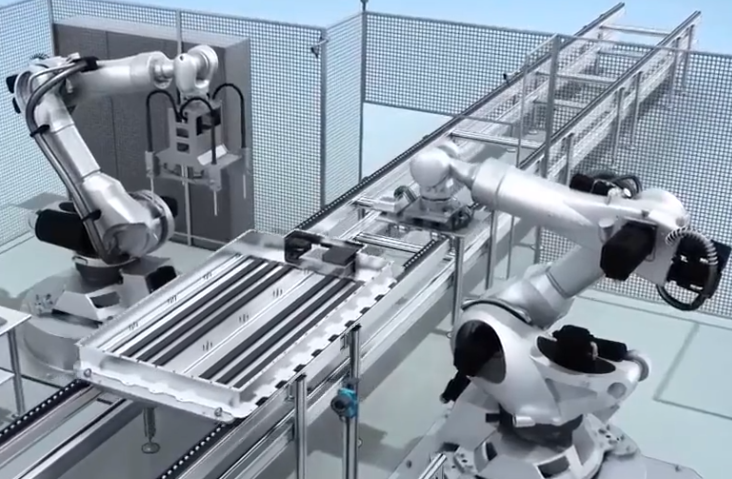

The handling robot is an automated product that replaces manual handling by applying the robot motion trajectory, and can be used for loading and unloading, connecting each process and sorting parts in each section of furniture.

AGV robot, or "automatic guided transporter", refers to a transport vehicle equipped with electromagnetic or optical automatic guidance devices, capable of driving along the specified guidance path, with safety protection and various transfer functions, which can be used in the furniture manufacturing process and intra-factory logistics transportation, and can improve the efficiency of logistics transportation.

7. Clothing field

Due to the labor-intensive nature of the clothing production industry, as early as 2012, a company in the United States began to develop hand-sewing robots instead of traditional manual sewing. The function of the sewing robot is to accurately needle the fabric, and realize the work of clothing manufacturing and survival under the premise of reducing manpower help. At present, China's research and development of sewing robots can use cameras to observe fabric, and use robotic arms to cut fabrics, which can reduce the error to within O.5mm.
