What does a miniature stepper motor do? What are the characteristics of micro stepper motors?

Comments

Are micro stepper motors widely used? What should I pay attention to when applying? -Jingbo Electromechanical

---

Micro stepper motor is a very useful component, in many equipment have applications, and more and more extensive, there is a stepper motor can make the equipment to achieve automatic movement and rotation, according to a certain cycle to work, for some cyclic work equipment is very useful, but also the most core components.

miniature stepper motor with encoder

Now some precision equipment also uses stepper motors, but the requirements for motors are also very high, of which the miniature stepper motor is very important, which can not only achieve the role of stepper motor, but also save the space of equipment parts installation, very effective. So what should be paid attention to when applying this stepper motor?

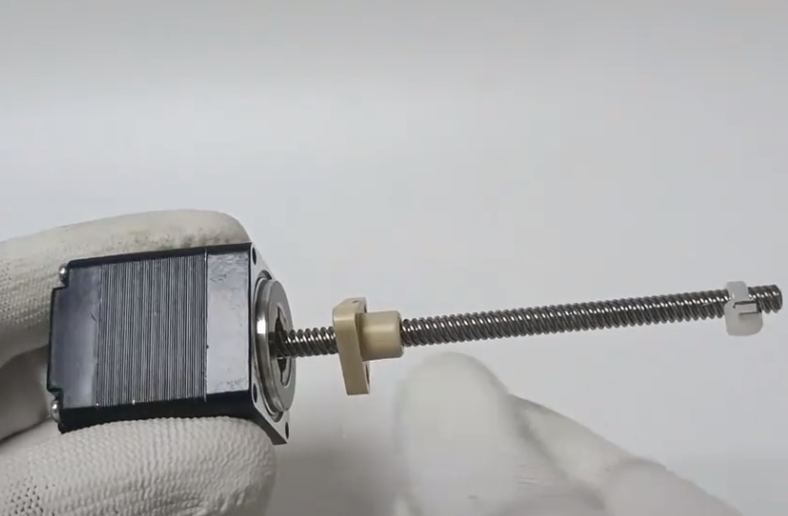

how to attach lead screw to stepper motor

1. Pay attention to the quality of the stepper motor must be high to meet the needs of equipment production.

We provide professional, high-end servo motor products, stepper motor drives, servo motor drives and other products. Contact: anwenqq2690502116@gmail.com

3D printer 42 stepper motor drive

For precision equipment, any error may lead to the equipment can not be used, so the quality requirements for the micro stepper motor is very high, in the procurement try to choose a more professional and reliable manufacturer, but also to the manufacturer's production technology to investigate, to see whether the production of the stepper motor has a certificate, the manufacturer has the qualification to produce precision stepper motor, this is very important, in the follow-up if there is a problem can be dealt with on a basis.

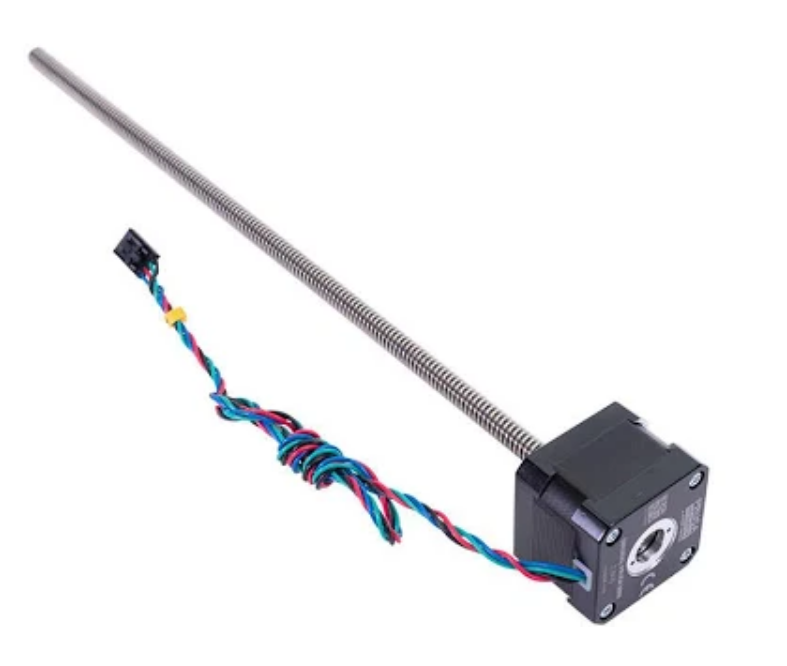

57mm lead screw stepper motor

In addition, for the use of stepper motors, it is also necessary to carry out certain tests, and it is not possible to purchase and use them directly, which will cause serious consequences that cannot be used.

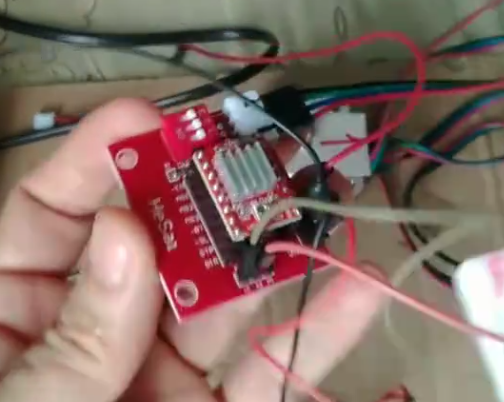

China's domestic stepper motor driver chip

2. Understand the methods and precautions used.

As a precision component, the micro stepper motor has many applications in precision equipment, but it is also necessary to pay attention to some problems of use, such as how to play the maximum role of the stepper motor, high temperature will be generated when the equipment is running, whether the micro stepper motor can meet the performance requirements of high temperature resistance, these must be clearly understood with the manufacturer to ensure that the stepper motor can play an effective role.

---

A stepper motor is a motor that converts an electrical pulse signal into a corresponding angular displacement or line displacement.

For each input pulse signal, the rotor rotates an angle or one step forward, and the angular displacement or line displacement of its output is proportional to the number of pulses entered, and the speed is proportional to the pulse frequency.

Therefore, stepper motors are also called pulse motors.

China's stepper motor in the early seventies of the twentieth century began to start, the mid-seventies to the mid-eighties for the finished product development stage, new varieties and high-performance motors continue to develop, at present, with the development of science and technology, especially the development of permanent magnet materials, semiconductor technology, computer technology, so that stepper motors have been widely used in many fields.

Our email: anwenqq2690502116@gmail.com

Answer 1

What does a miniature stepper motor do? what does a stepper motor do？

Micro stepper motor is the key actuator in MEMS, and the main materials are ceramics, metals, composite materials, etc.

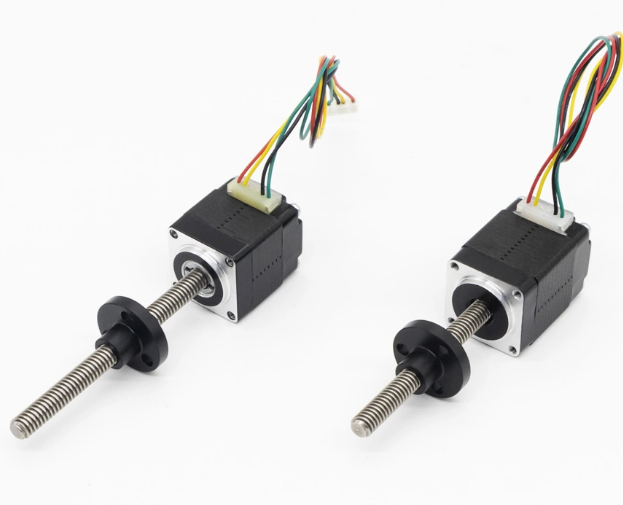

What does a miniature stepper motor do? - Nema8 20mm Size Linear Stepper Motor Lead Screw

The miniature stepper motor is composed of electronic components such as a matrix, a mover and a linear guide.

The matrix acts as a stator, and its surface has magnetic poles, stator teeth, coils and control circuits.

miniature stepper motor with encoder

The mover is located above the stator and has mover teeth on its lower surface.

The guide rail has a linear bearing 12GA function to keep the mover in place.

mini stepper motor with lead screw

The substrate and guide rail are assembled together by gluing using monocrystalline silicon.

The characteristics of the miniature stepper motor are as follows:

Mini Precious 10mm Stepping Stepper Motor DC 5V-6V 2-Phase 4-Wire

1. Micro stepper motor is an open-loop control electronic component that converts electromagnetic pulse into angular displacement or line displacement, which is an induction motor that works to change direct current into time-sharing power supply through electronic circuits.

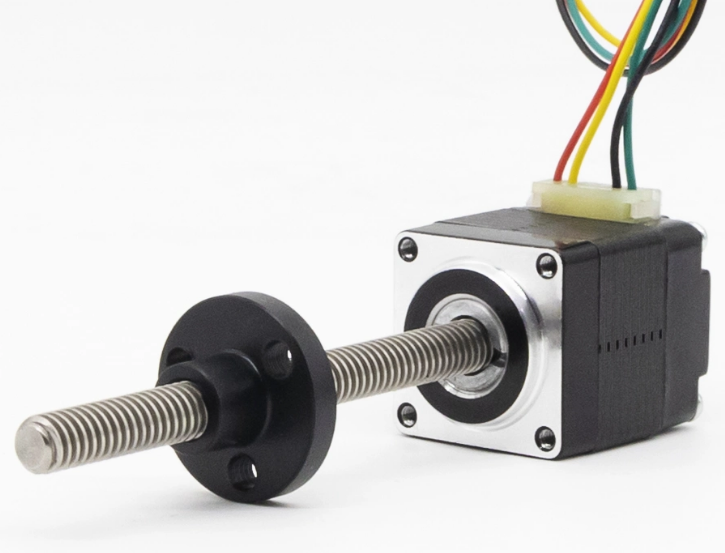

Nema8 20mm Linear Stepper Motor Lead Screw

2. The miniature stepper motor controls the angular displacement by controlling the number of pulses, so as to achieve the purpose of accurate positioning; The speed and acceleration of motor rotation can also be controlled by controlling the pulse frequency, so as to achieve the purpose of speed regulation.

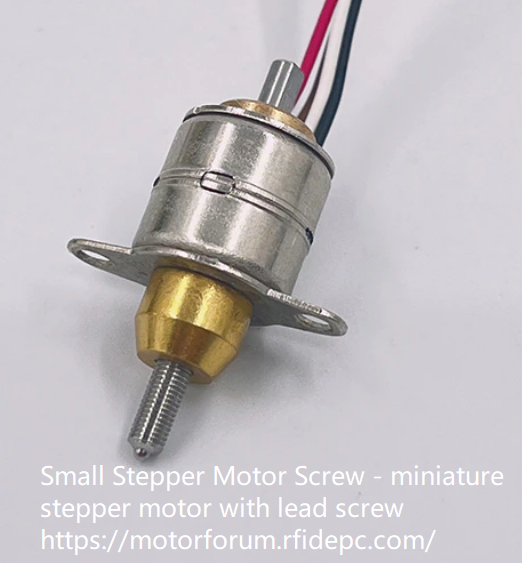

small stepper motor screw - miniature stepper motor with lead screw

The assembly method of micro stepper motor is mainly glued.

Answer 2

Stepper micro motor parameters and uses

Stepper micro motor, also known as miniature stepper motor, is a widely used reduction transmission equipment, micro stepper motor is mainly composed of matrix, mover and linear guide.

The matrix also acts as a stator, with magnetic poles, stator teeth, coils and control circuits on its surface; The mover is located above the stator and has mover teeth on its lower surface; The guide rail acts as a linear bearing, keeping the mover in place.

Micro stepper motor is usually not used alone, need to be equipped with reduction gearbox, encoder together, this is called micro stepper gearmotor, the main transmission structure stepper motor, reduction gearbox, encoder integrated manufacturing assembly, micro stepper gearmotor is widely used in smart home, robots, electronic products, intelligent cars and other industries.

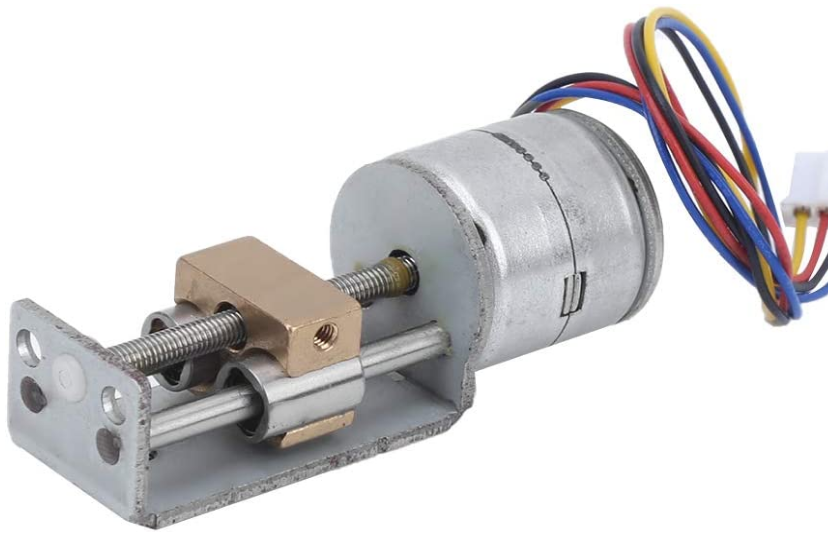

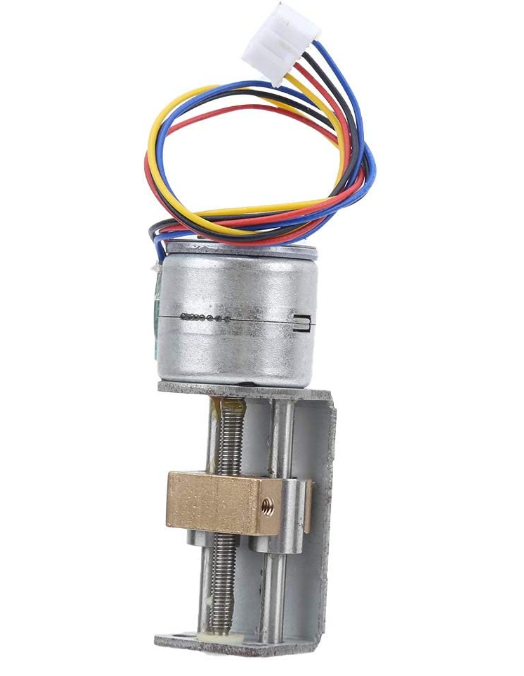

20Mini Stepper Motor with Linear Lead Screw Nut Slider 2‑Phase 4‑Wire Slider Stroke 22mm

Micro gear stepper geared motor is a fine product in the geared motor, with high technical content, it has the latest technical requirements to make, micro stepper geared motor not only saves space, reliable and durable, high overload capacity and other characteristics, but also has low energy consumption, superior performance, low vibration, low noise, high energy saving and other characteristics.

The gears used on the stepper gearmotor products are precision processed to ensure the accuracy of positioning, and the various motors that constitute the gear processing configuration of the gear stepper gearmotor assembly form a collective integration to ensure the quality of the product.

20-28-35-42-57-86 ball screw linear stepper motor External drive silent motor can be customized

Stepper micro geared motor is a kind of low-power geared motor equipment, technical parameter range diameter: 3.4mm-38mm, voltage: 3V-24V, power: 0.01-40W, output speed: 5-2000rpm, reduction ratio: 5-1500, output torque: 1gfNaN-50KgfNaN;

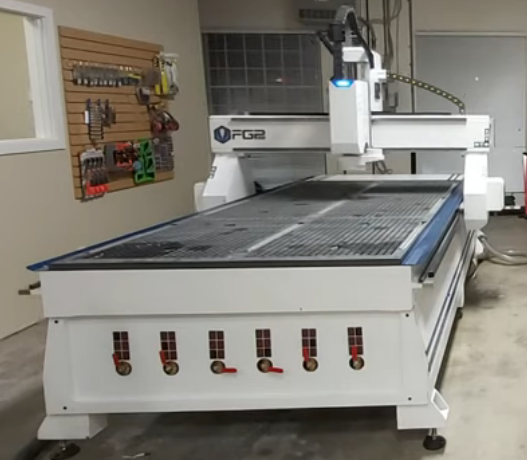

Difference between servo and stepper motors in CNC router

Stepper micro motor parameters:

Product category:Stepper gearmotor

Outer diameter: 4mm

Material: hardware

Direction of rotation: CW&CCW

Gearbox return difference: ≤3°

Bearings: sintered bearings

Axial channeling: ≤0.3mm

Answer 3

Stepper micro motor, also known as miniature stepper motor, is a widely used reduction transmission equipment, micro stepper motor is mainly composed of matrix, mover and linear guide.

Answer 4

What is a miniature stepper motor？
Stepper motor is an indispensable accessory on many mechanical equipment, because the equipment used is different, so the type of stepper motor is also different, enterprises in the production of stepper motor before going to the corresponding investigation, and then according to user needs to produce products that meet the requirements, in the stepper motor there is an accessory called micro stepper motor. Let's take a look at what a miniature stepper motor is.

small stepper motor screw - miniature stepper motor with lead screw

What is a miniature stepper motor?

The selection of micro stepper motor should follow the principle of selecting the motor first and then selecting the stepper motor driver, first clarify the load characteristics, and then find the stepper motor that matches the load characteristics by comparing the static torque and torque-frequency curves of different types of stepper motors.

Mini Precious 10mm Stepping Stepper Motor DC 5V-6V 2-Phase 4-Wire Telescopic Linear Screw Shaft 6.5mm Stroke 16.5 Ohms

The holding torque of a miniature stepper motor is similar to what a conventional motor calls "power". Of course, there is an essential difference. The physical structure of the stepper motor, different from the AC and DC motors, the output power of the motor is variable.

Generally, depending on the amount of torque required (that is, the torque of the animal body to be carried), the type of motor is selected. Roughly speaking, the torque is below 0.8N.m, choose 20, 28, 35, 42 (the diameter or square degree of the motor body, unit: mm); If the torque is about 1N.m, it is more appropriate to choose a 57 motor.

The torque is stepped in the case of several N.m or more, and how to choose a miniature stepper motor driver is to choose a stepper motor with specifications such as 86, 110, 130.

Our company mainly produces micro stepper motor such products, as a micro stepper motor manufacturer, our products are still very good, and all aspects of performance is also able to withstand the test.

For users, our products will be better than the products of other enterprises, because the materials used are relatively good, then the quality of the products produced will not be worse. Our email: anwenqq2690502116@gmail.com

Answer 5

What are the characteristics of micro stepper motors?

1. Stepper motor is an open-loop control element stepper motor that converts the electrical pulse signal into angular displacement or line displacement.

2. It is an induction motor, and its working principle is to use the circuit to turn direct current into time-sharing power supply.

3. Control the angular displacement by controlling the number of pulses, so as to achieve the accurate purpose; At the same time, the speed and acceleration of motor rotation can be controlled by controlling the pulse frequency, so as to achieve the purpose of speed regulation.

4. There are three main types of stepper motors in structure: reactive, permanent magnet and hybrid

Reactive formula:

The stator has windings and the rotor is composed of soft magnetic materials.

Simple structure, low cost, small step angle, up to 1.2°, but poor dynamic performance, low efficiency, large heating, reliability is difficult to guarantee.

Permanent magnet type:

The rotor of the permanent magnet stepper motor is made of permanent magnet material, and the number of poles of the rotor is the same as the number of poles of the stator.

It is characterized by good dynamic performance and large output torque, but this motor has poor accuracy and large step moment angle (generally 7.5° or 15°).

Hybrid:

The hybrid stepper motor combines the advantages of reactive and permanent magnet type, with multi-phase winding on the stator, permanent magnet material on the rotor, and multiple small teeth on the rotor and stator to improve the step moment accuracy.

It is characterized by large output torque, good dynamic performance and small step angle, but complex structure and relatively high cost.
