Bus type drive refers to the fieldbus to make the automatic control equipment and system step into the ranks of the information network, opening up a broader field for its application, a single can be attached to multiple drive equipment, easy to save installation costs; Save maintenance overhead; Improved system reliability; It provides users with more flexible system integration initiative.

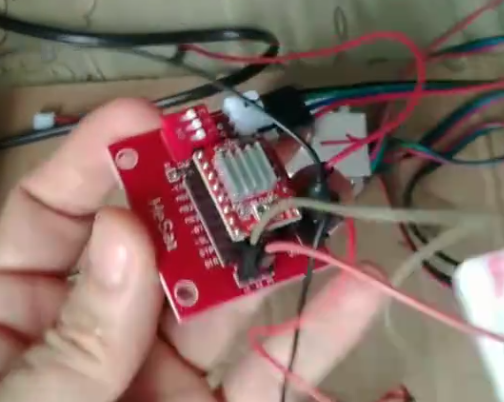

Pulse type driver is a cost-effective subdivision driver designed based on PID current control algorithm, with superior performance, high-speed torque output, low noise, low vibration, parameter configuration through DIP switch selection. It has the characteristics of reducing current when idle, anti-resonance in low-speed domain, input signal filtering, dialing microstep subdivision, and self-test error reporting.
The following describes how the two drive systems are wired:

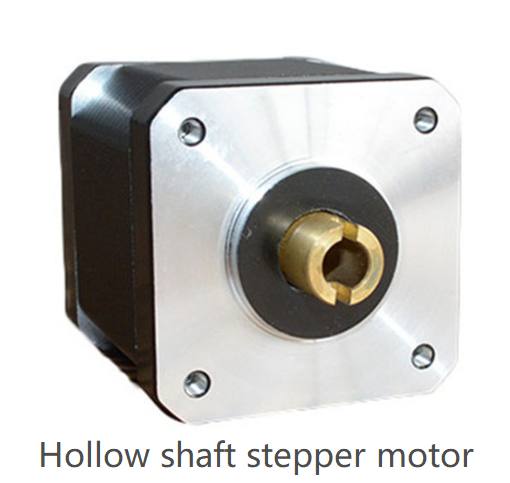

Whether it is a pulse type drive or a bus type drive, to achieve accurate control of the shaft feed and speed of the stepper motor, the size of each step is determined by the motor, and the power behind these steps comes from the stepper driver.
